Reference point markers - High
Markers with high adhesiveness
Reference point markers - High have a high adhesiveness, which makes them stick better on rough surfaces. In addition, high reference point markers can resist temperatures up to 120°C.
The size of the reference point markers depends on which 3D scanner and measuring volume is used for measuring the part.
N.B. Zebicon is the Danish distributor of Carl Zeiss GOM Metrology products, and therefore only takes care of the Danish market. Please contact your local distributor for a quote on the needed reference point markers.

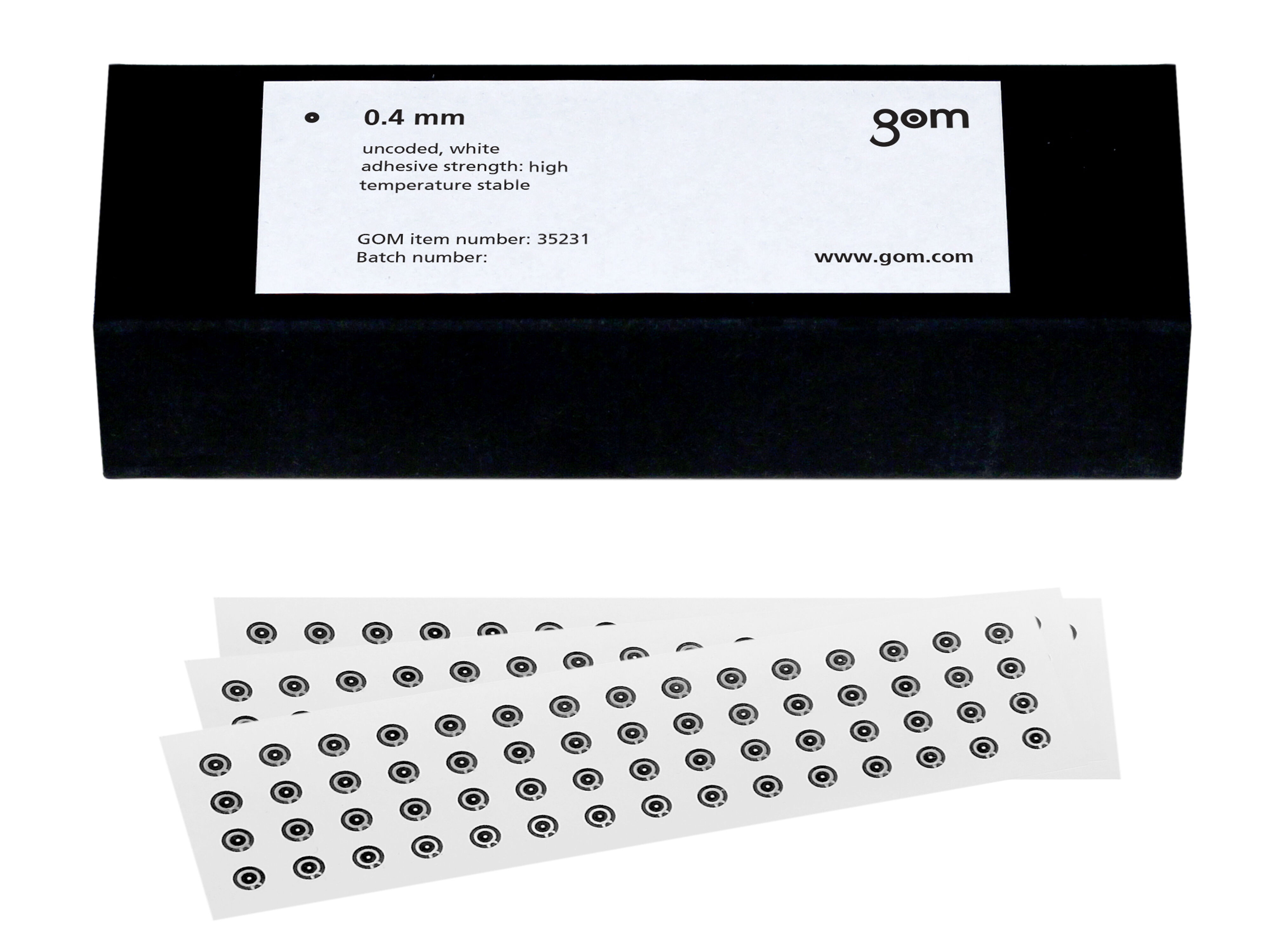

0.4 mm reference point markers
Inner diameter: 0.4 mm
Outer diameter: 1.9 mm
Temperature stable up to 120°C
Round, on adhesive foil in box
3.000 single point markers per box

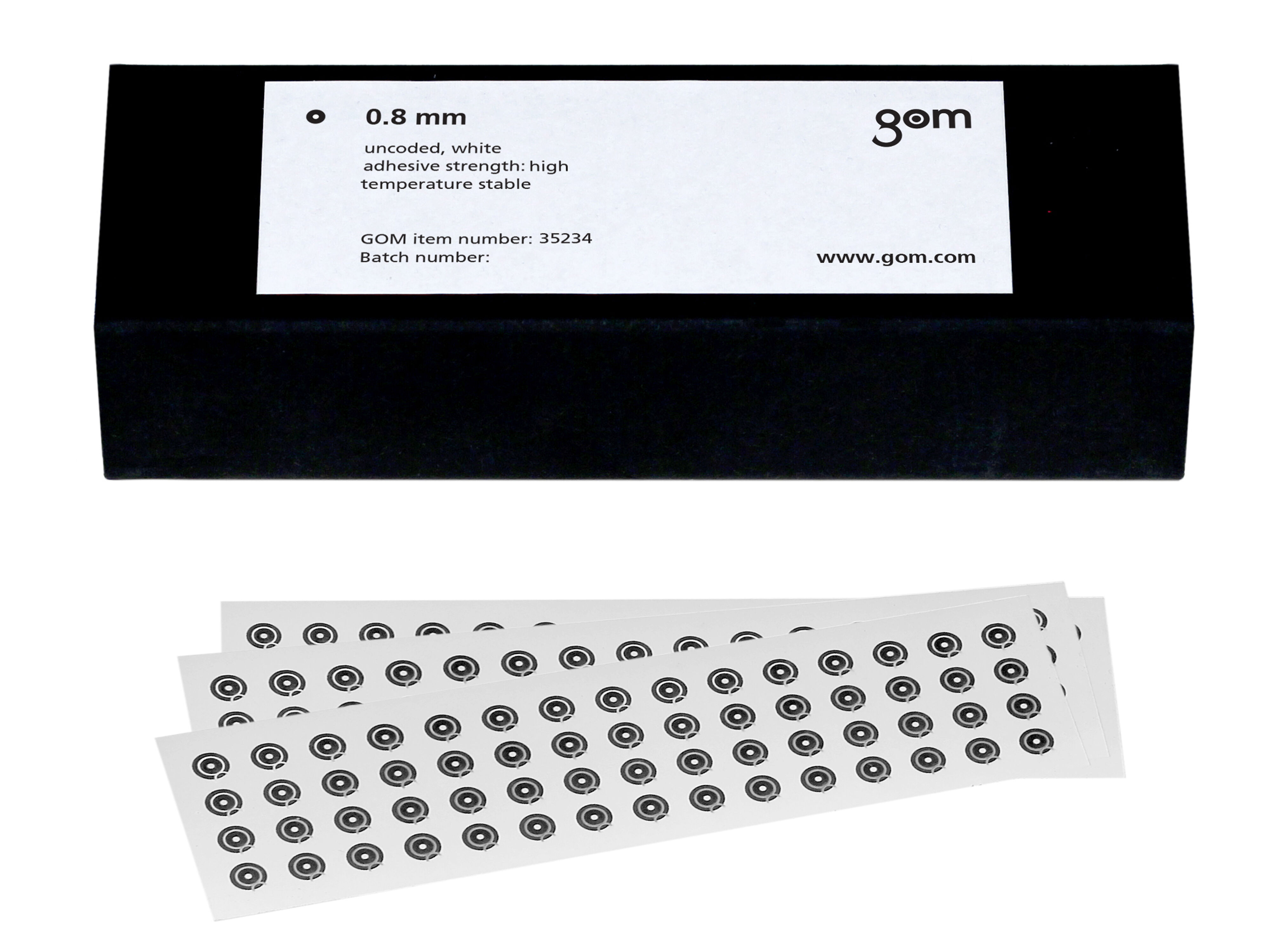

0.8 mm reference point markers
Inner diameter: 0.8 mm
Outer diameter: 2.5 mm
Temperature stable up to 120°C
Round, on adhesive foil in box
3.000 single point markers per box

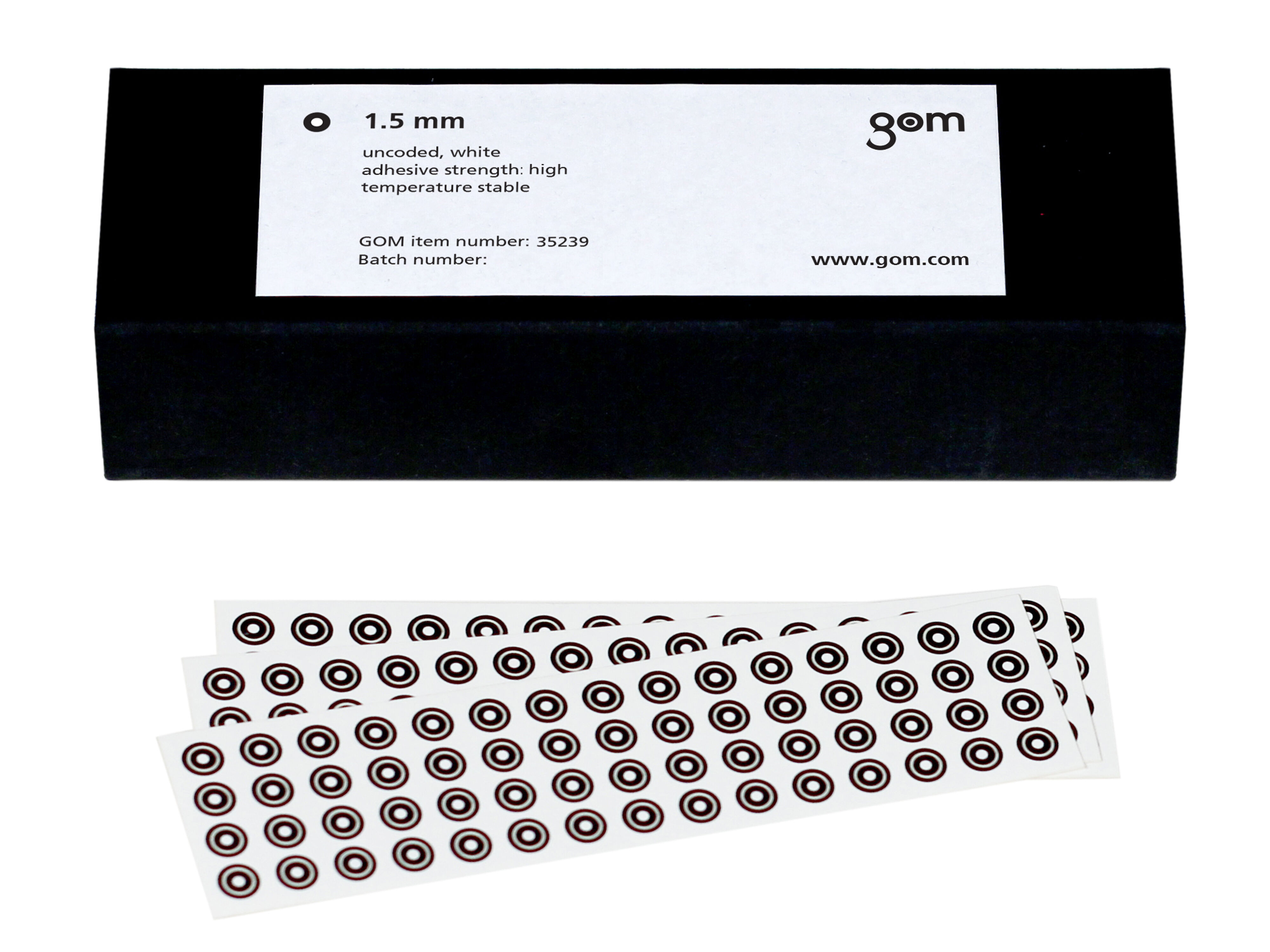

1.5 mm reference point markers
Inner diameter: 1.5 mm
Outer diameter: 3.5 mm
Temperature stable up to 120°C
Round, on adhesive foil in box
3.000 single point markers per box

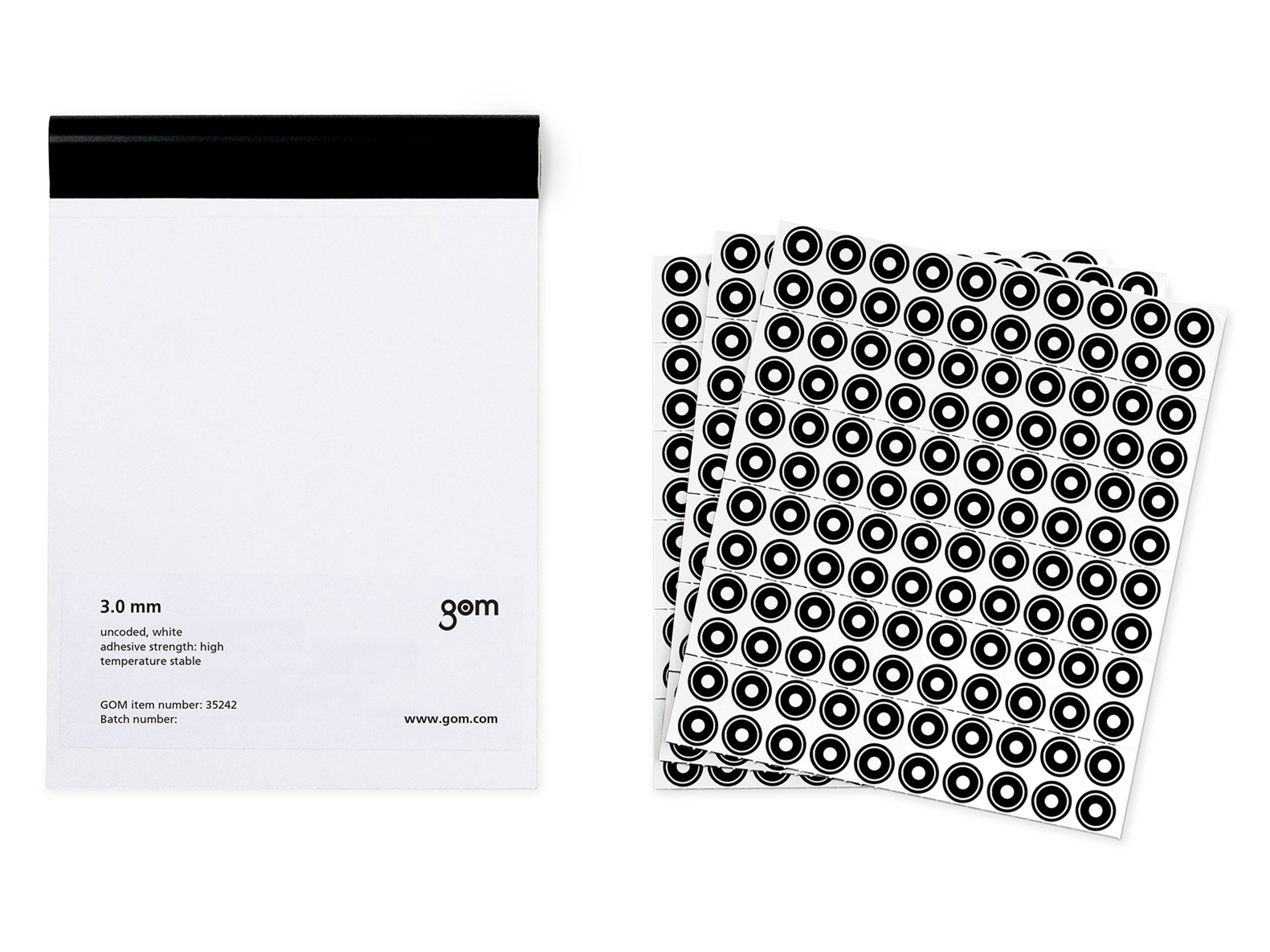

3.0 mm reference point markers
Inner diameter: 3.0 mm
Outer diameter: 7.0 mm
Temperature stable up to 120°C
Round, on adhesive foil as tear-off pad
3.000 single point markers per pad

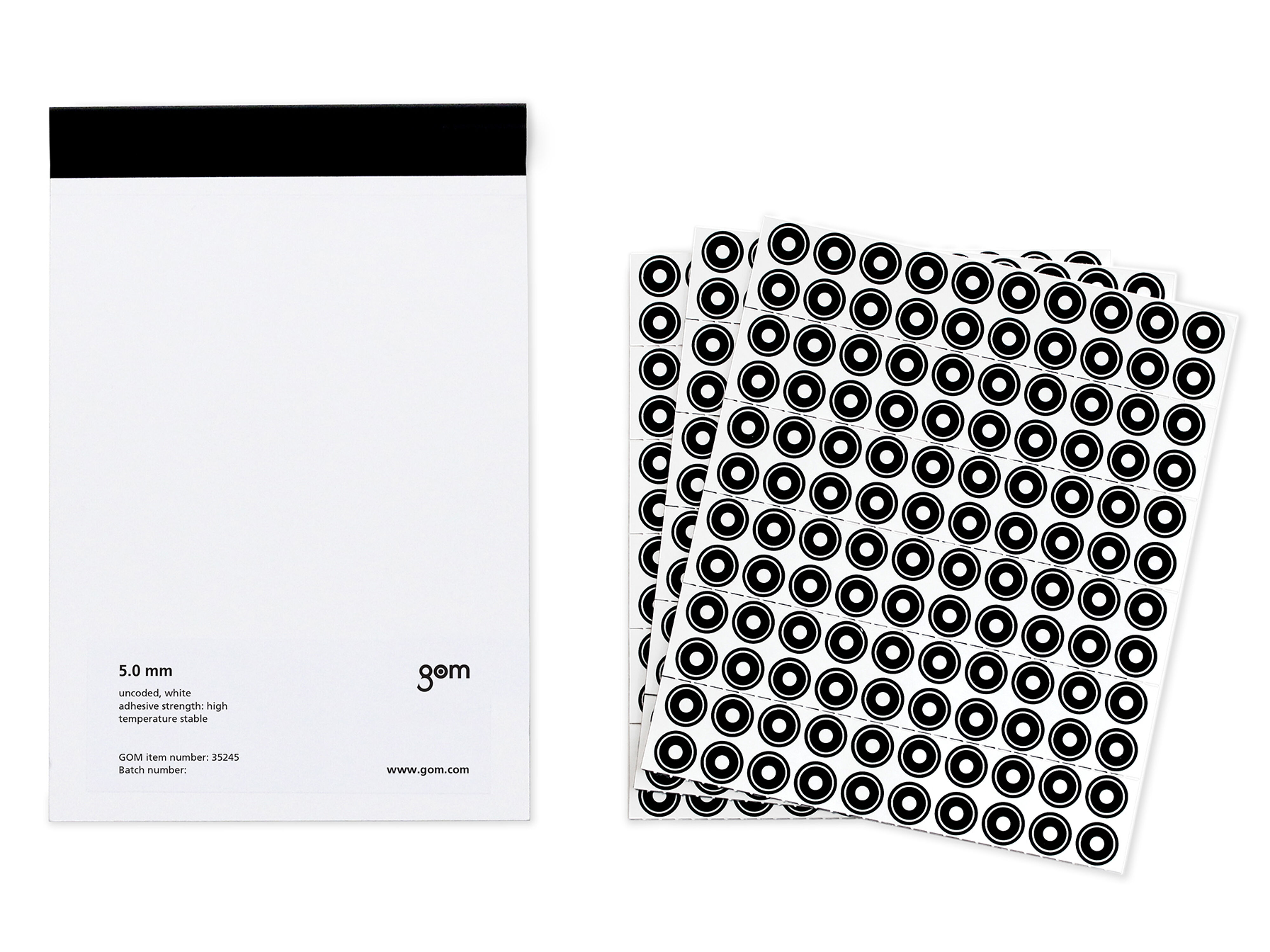

5.0 mm reference point markers
Inner diameter: 5.0 mm
Outer diameter: 10.0 mm
Temperature stable up to 120°C
Round, on adhesive foil as tear-off pad
3.000 single point markers per pad

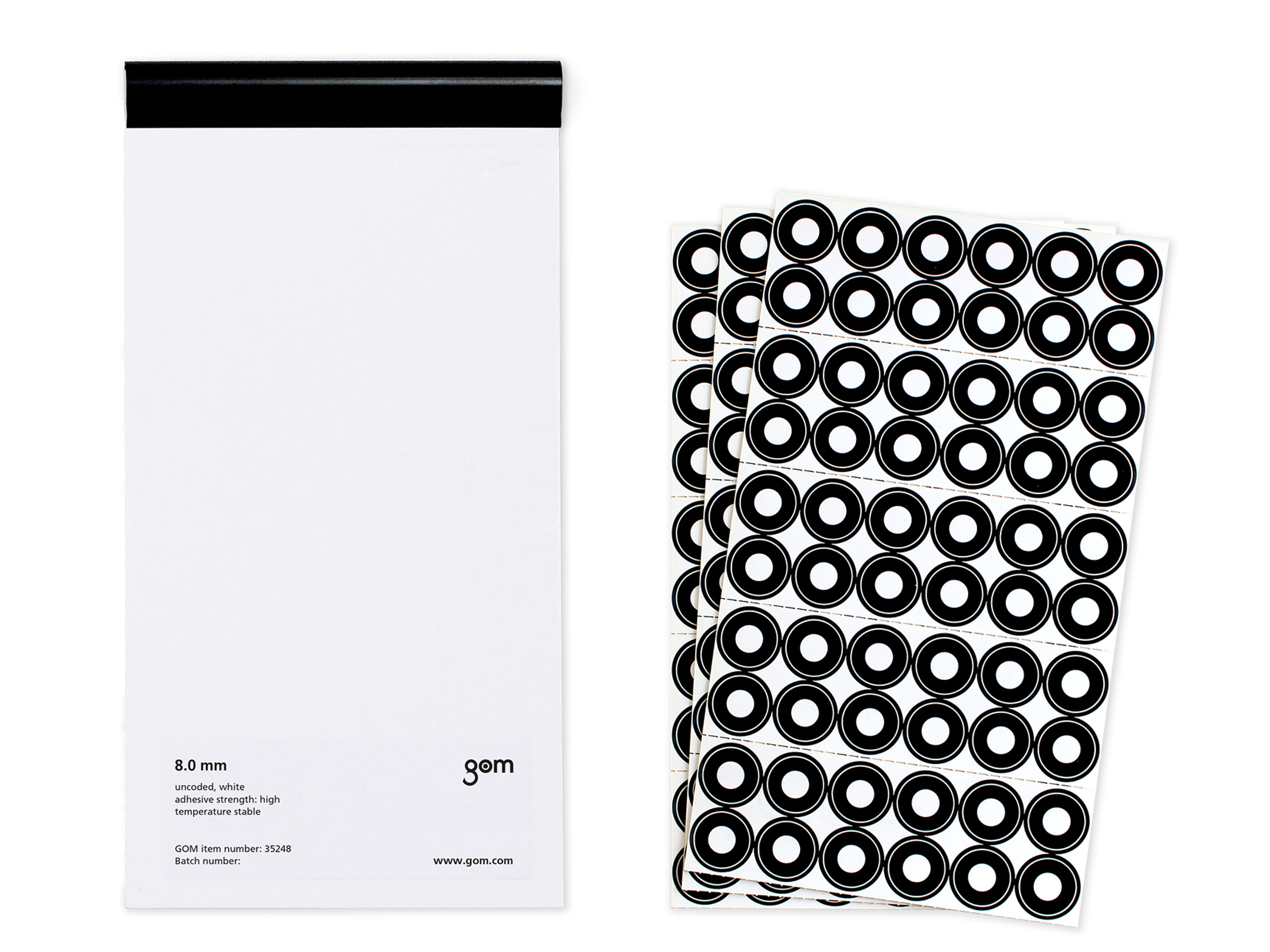

8.0 mm reference point markers
Inner diameter: 8.0 mm
Outer diameter: 16.0 mm
Temperature stable up to 120°C
Round, on adhesive foil as tear-off pad
3.000 single point markers per pad
